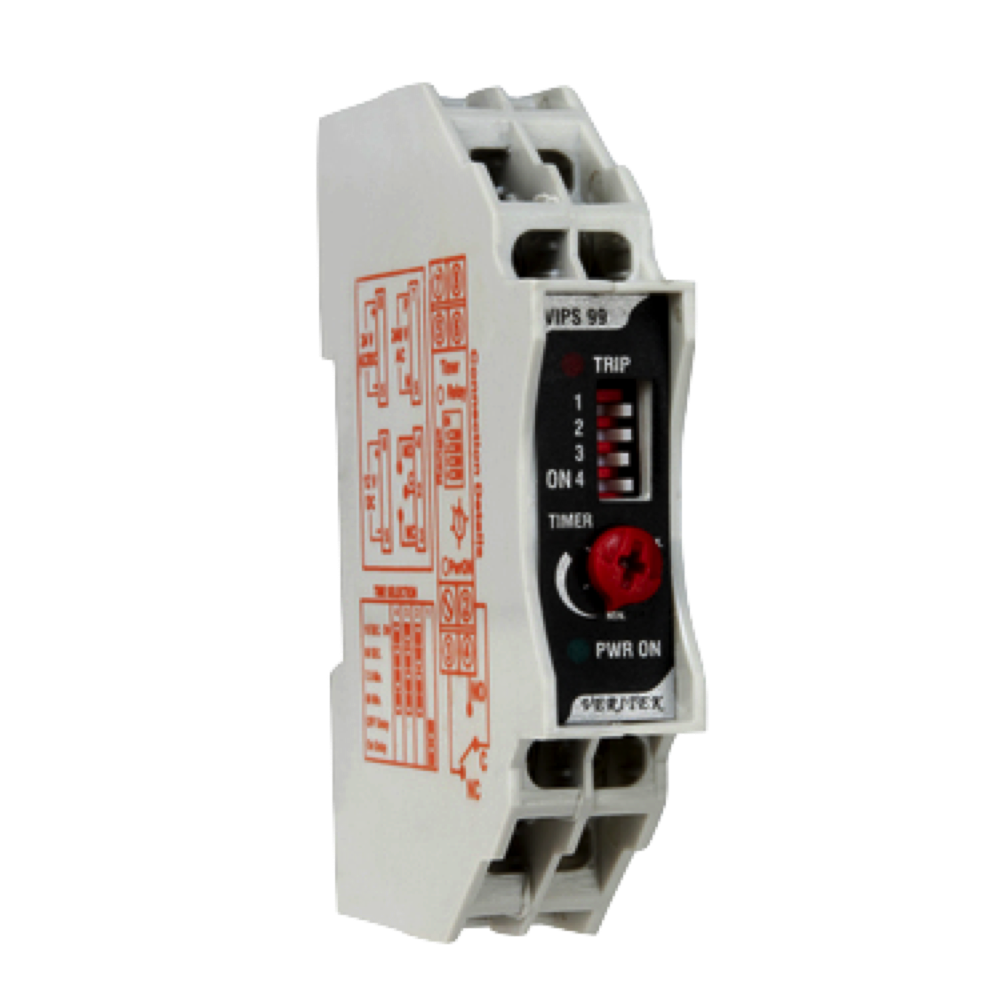

Description
Application for Delay Timer
The Timers are used in Control Panel, Automation Panels, Feeders / Motor, Generator, Transformer, Electrical Distribution, etc, where a specific delay is required for ON of the load or OFF of the load after a specific Interval.
Features for the Delay Timer
- Consistent reliability with high accuracy .
- Time Delay User settable (4 Ranges)
- LED Indication for Power & Relay status

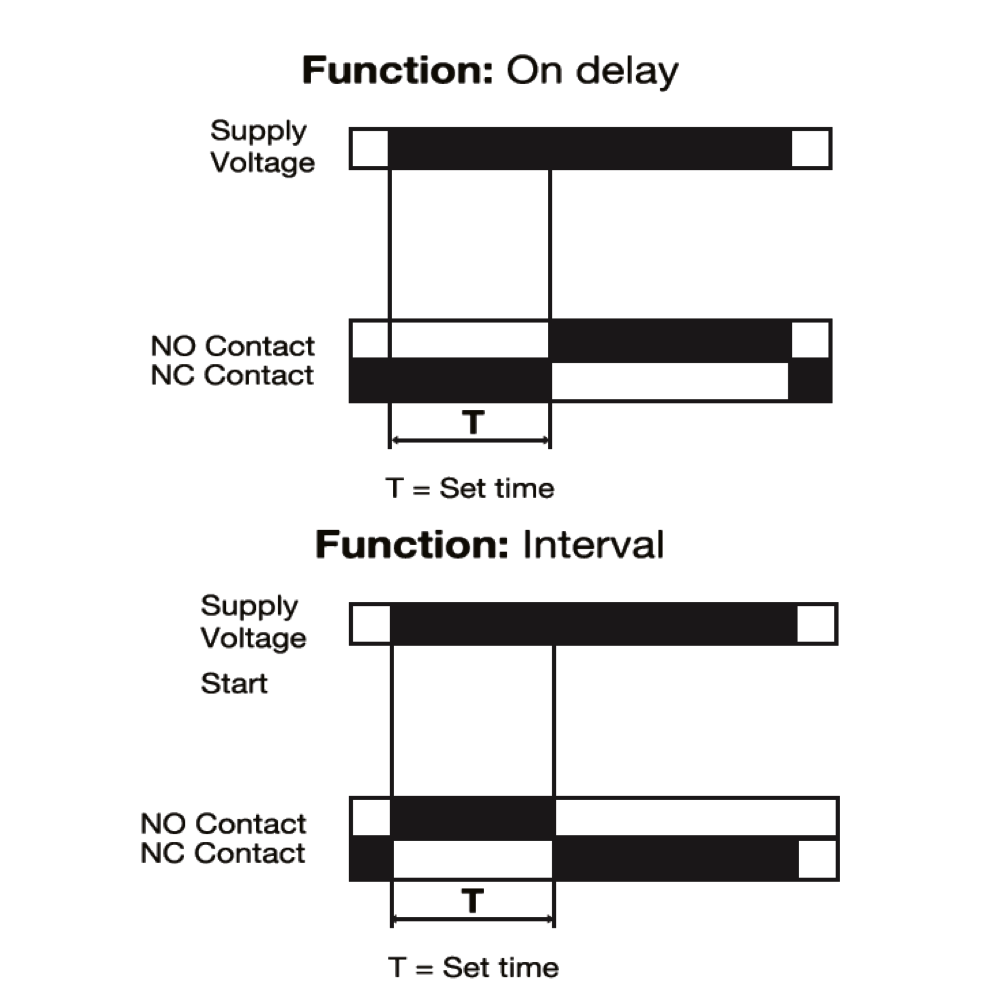

- ON Delay / OFF Delay
- Interval user selectable
- Compact Size
SPECIFICATION

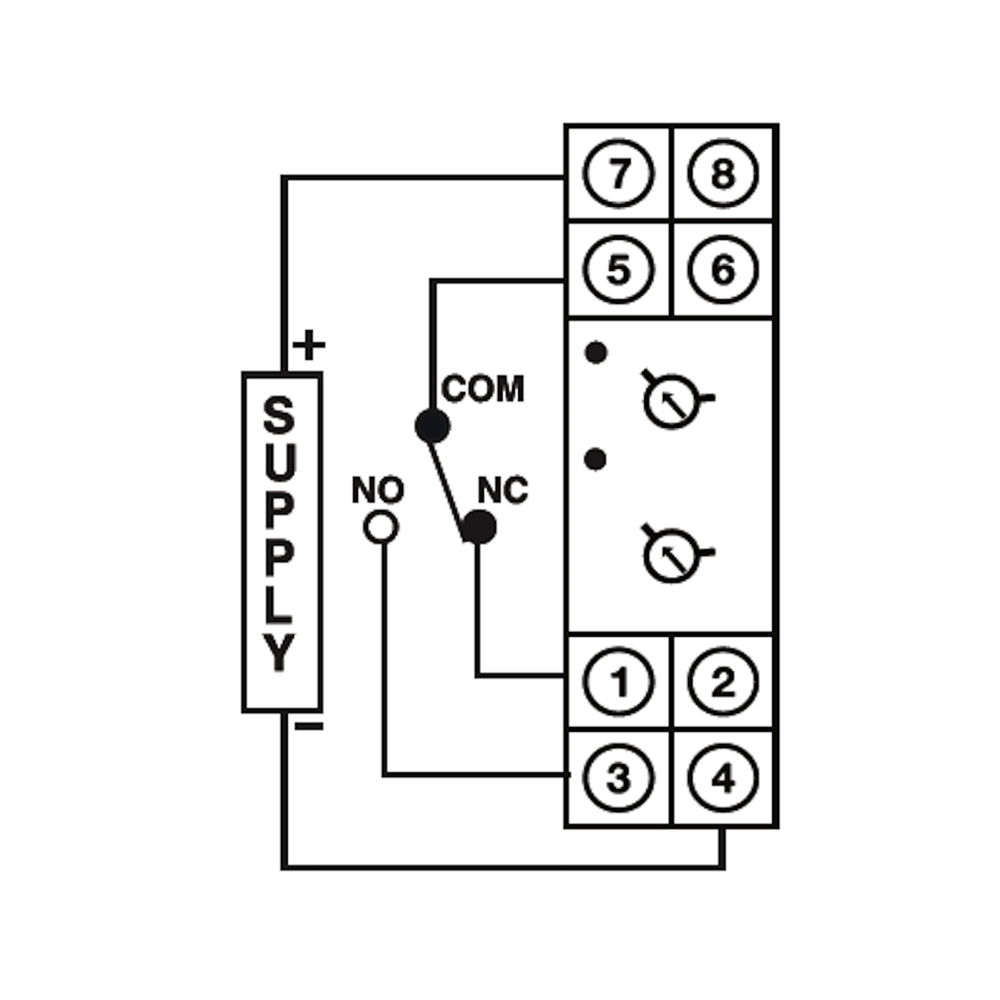

| Output Contact | SPDT (1 C/O) |
| Contact Rating | 5 AMP 230VAC |
| Time Range | 0-15 sec |
| 0-60 sec | |
| 0-7.5 min | |
| 0-60 min | |
| LED Indication | Power & Relay Status |
| Auxiliary Supply | 230V AC 50 Hz & 24V AC/DC |
| 110V AC 60 Hz & 24V AC/DC | |
| Mounting | DIN Rail 35MM |
| Dimension | 17.5x77x105 mm (WXLXH) |
