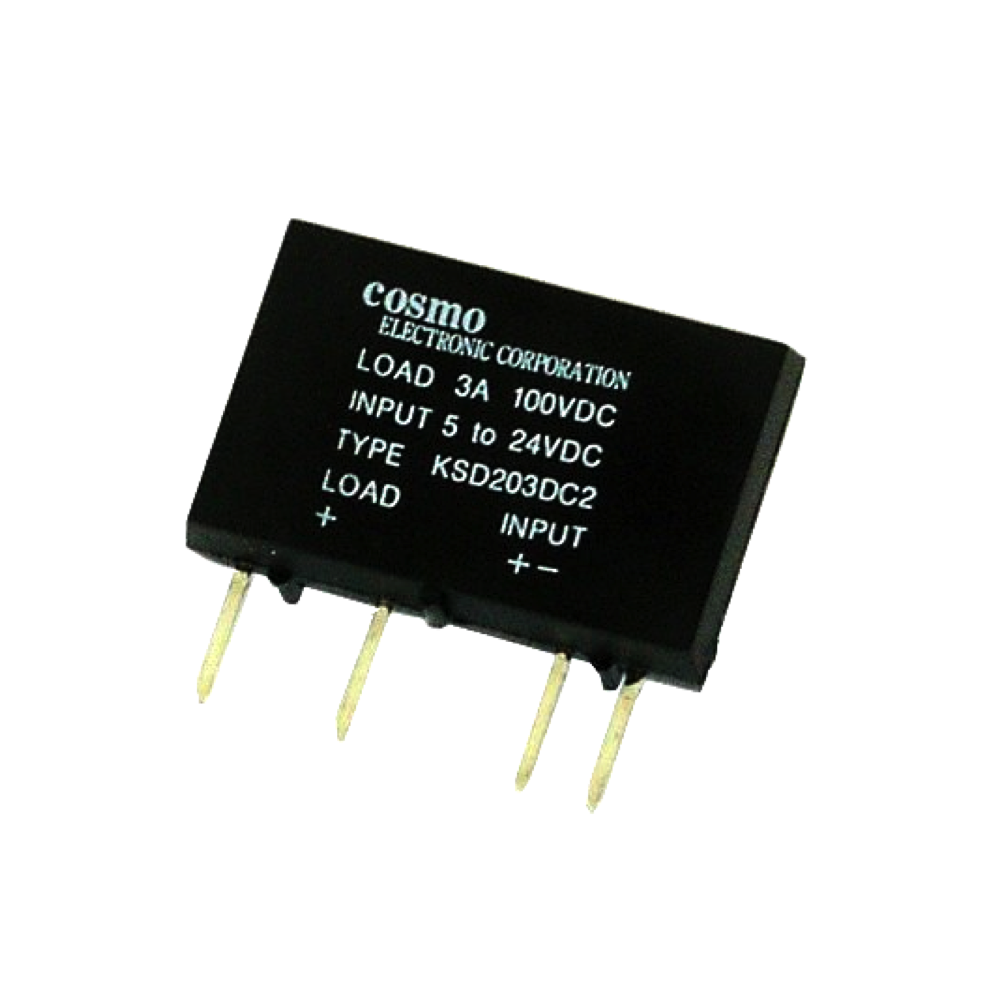

Solid State Relay SSR DC to DC
Solid State Relay SSR DC to DC - Image 2
Solid State Relay SSR DC to DC - Image 3
Solid State Relay SSR DC to DC - Image 4

Solid State Relay SSR DC to DC

₹525.00 Excl. of GST

  • SSR Type: DC to DC
  • MAX Load Current AMPS: 3A
  • DC Control Voltage: 5-24VDC
  • DC Load Voltage: 100V DC
Add to wishlist
SKU: SSR-DCDC- Categories: , , , , Tags: , ,

Description

APPLICATION
Food Processing Machines, Control Panel board, Packaging machines, Heater Load, VMC machines

Specification

  • TYPE: DC to DC
  • Current (Amps): 3AMPS
  • Voltage (V) 100V DC
  • Voltage Input: 5-24VDC
  • Mounting: PCB Mounting

FEATURES

  • Molded epoxy body
  • High input/output insulation
  • Small size and light weight
  • Can be installed directly on the PC board
  • Fast reactive speed
  • Normally open

Additional information

Weight 200 g
Current Limit

3AMP
