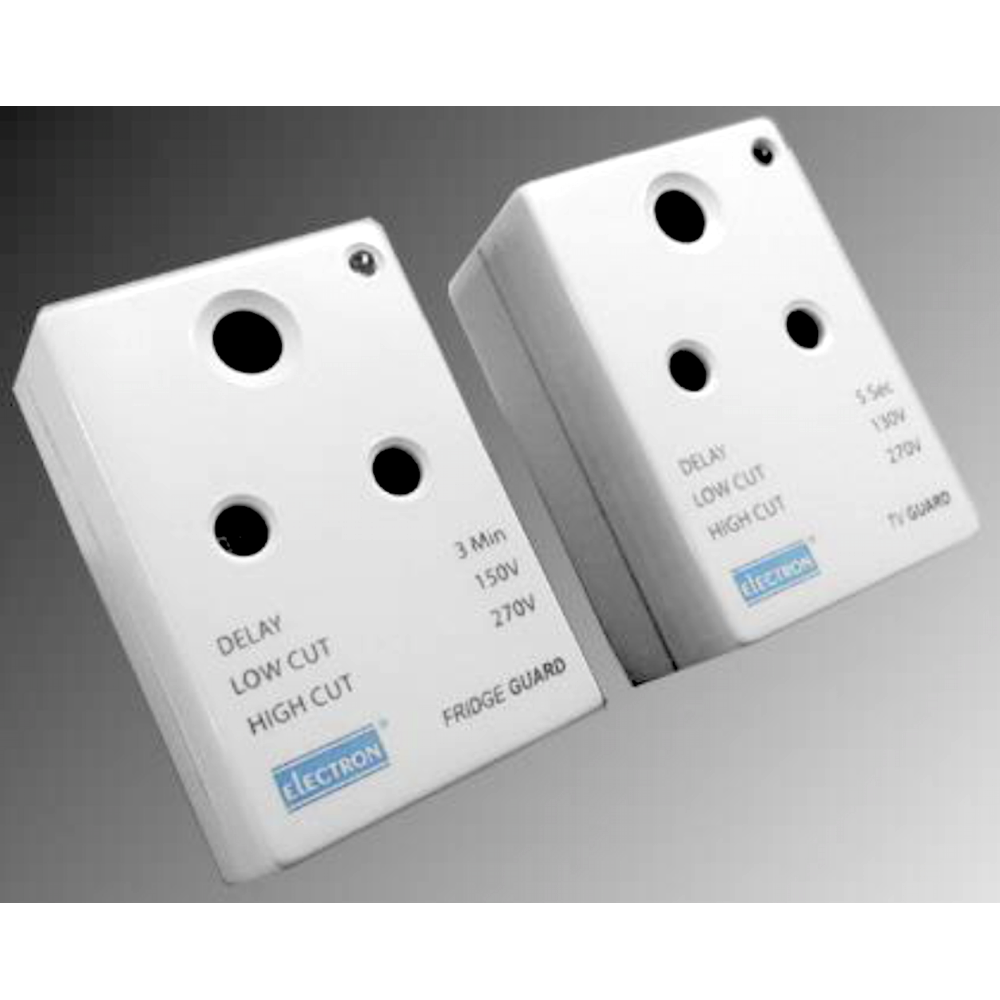

TV GUARD n FRIDGE GUARD APPLIANCE PROTECTOR MICROCONTROLLER BASED

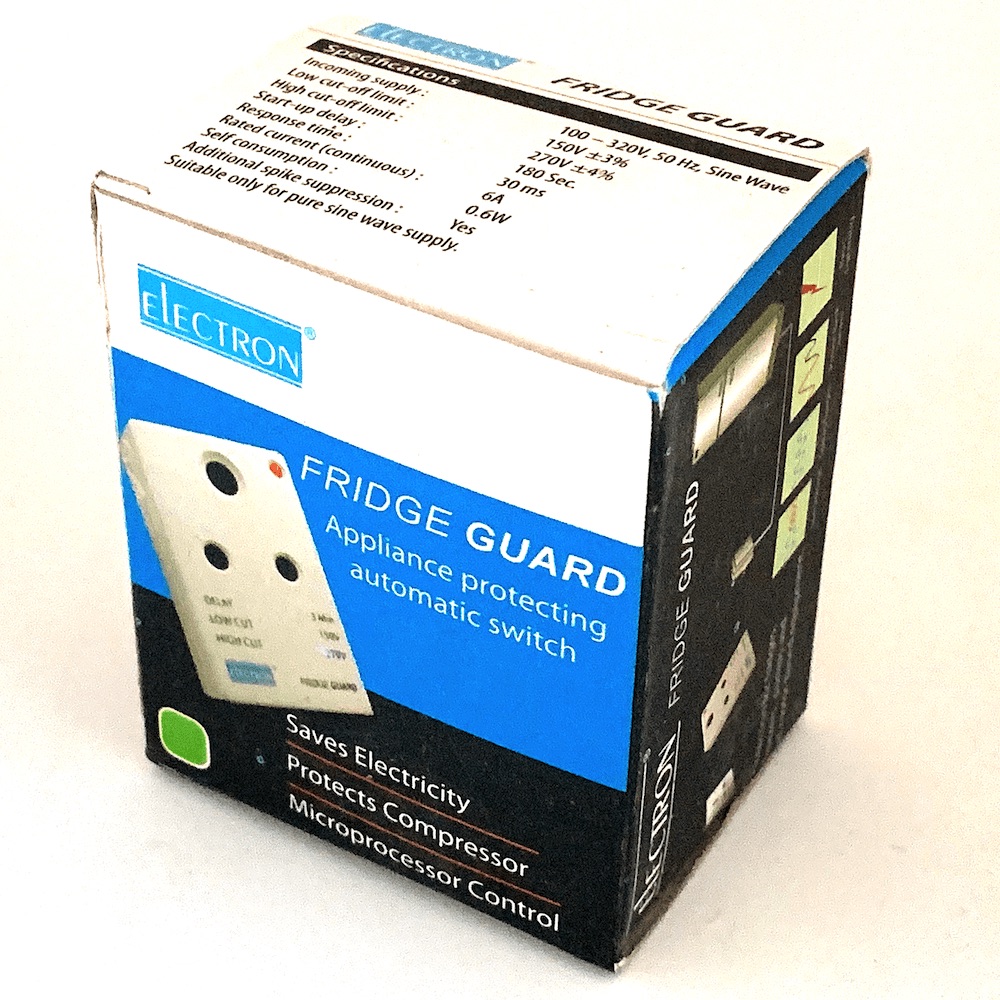

TV GUARD n FRIDGE GUARD APPLIANCE PROTECTOR MICROCONTROLLER BASED - Image 2

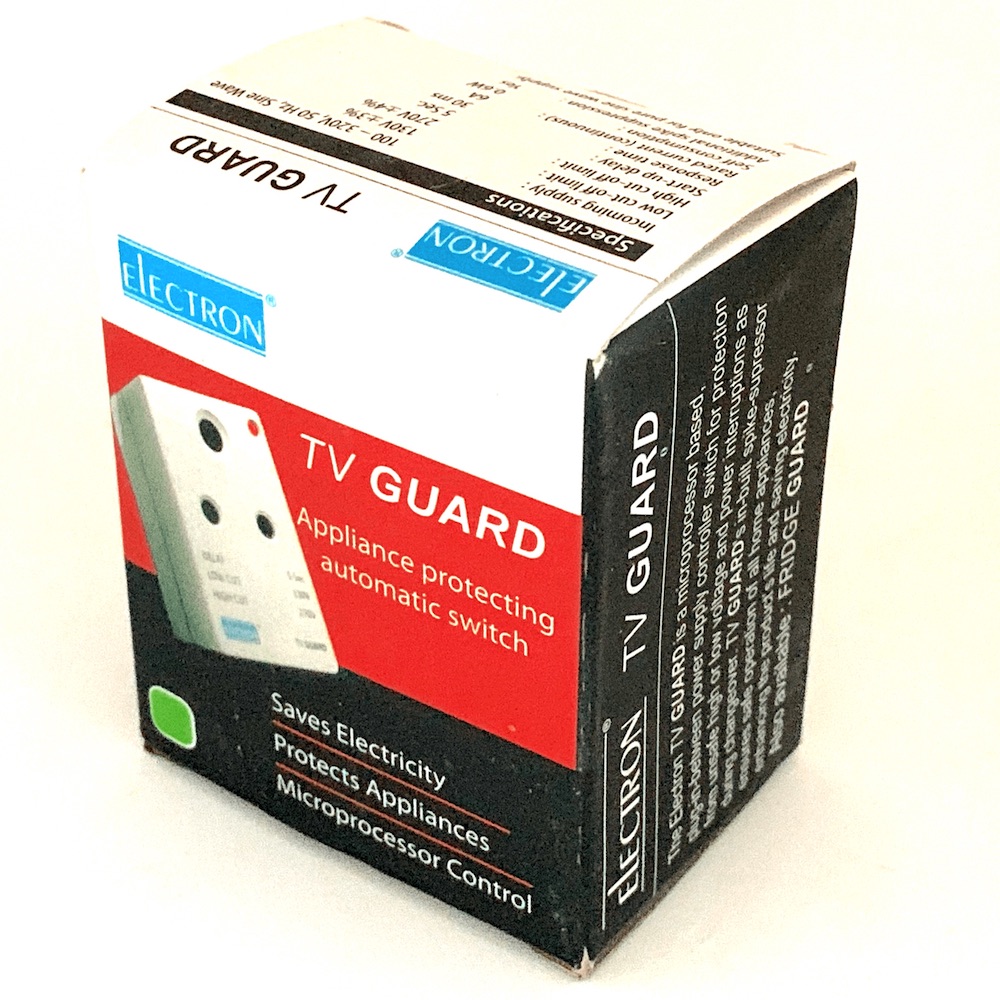

TV GUARD n FRIDGE GUARD APPLIANCE PROTECTOR MICROCONTROLLER BASED - Image 3

TV GUARD n FRIDGE GUARD APPLIANCE PROTECTOR MICROCONTROLLER BASED

₹500.00 Excl. of GST

► Detects and Protects your devices from power fluctuations like High & Low Voltages, Surges & Spikes, Electrical Noise & Frequency Variations. Ensures supply of healthy voltage to the connected electrical appliances & electronic devices, increasing their life and longevity and minimizing the risk of damage.

► Automatically cuts off power to the connected device when there are unhealthy power fluctuations and automatically reconnects once the voltage is healthy again. With Surge Suppression, Startup delay and Automatic Recovery delay built-in, have a complete peace of mind 24*7*365!

Standard Product is shipped in 2 to 3 Days. Before January 14, 2025
Estimated Delivery Date will be provide on checkout page
Add to wishlist
SKU: PW-AP- Categories: , , Tags: , , , , , ,

Description

Appliance Protectors are microprocessor based, plug-in-between power supply controllers for protection from unsafe high or low voltage and power interruptions as during changeover.
* The Protectors continuously monitor supply voltage, and in the event of an overrun of the factory set limits, disconnect the appliance instantly, thus protecting it from the hazards of both low and high voltage.
* in-built 5Sec – 180Sec delay timer after main is normal, ensures safe starting conditions for the fridge motor, enhancing compressor life and saving electricity.

Specifications:
* Incoming supply: 100 – 320V, 50 Hz
* Low cut-off limit
* * FRIDGE GURAD: 150V ±3%
* * TV GURAD : 130V ±3%
* High cut-off limit: 270V ±4% 270V ±4%
* Start-up delay
* * FRIDGE GUARD: 180 Sec. Response time 110 ms
* * TV GUARD: 5 Sec. Response time 30 ms
* Rated current (continuous): 6A
* Self consumption: 0.6W
* Additional spike suppression: Yes
* Weight: 63 Grams
* Dimensions (W x L x H) 43 x 65 x 31 mm
* Plug and Socket type 6A/10A, 3 pin round
* Microprocessor controlled – high speed Response
* Fully Automatic Operation, No User Intervention Required
* Protects and Prolongs life
* TV Guard can be used for Audio System, Computers etc

Additional information

Weight 200 g
Dimensions 15 × 10 × 10 cm
TYPE

FRIDGE, TV-AUDIO

Disclaimer

The product photos shown on this site are representative of the product colors. Actual product colors may vary from the images shown for the following reasons:

  1. Like any colored product, the dye shades / colors may vary from one production run to the next.
  2. The color of the product will appear different in various lighting conditions (e.g. sunlight vs. fluorescent light).
  3. Your individual monitor settings can cause the appearance of the color on the screen to differ from the actual photograph.

Safety Information

Requires assembly by Trained Electrician, Cannot be used without Installation by Electrician Hire a qualified, licensed electrician to perform any electrical Panel works. However, if you do decide to do-it-yourself, consider the following important safety warning before undertaking any home electrical project:
  1. Never attempt a project that is beyond your skill level.
  2. incorrect wiring / installation can cause electrical fires, injuries, and fatalities.
  3. 'Don't Die for DIY' Use an RCCB (residual current device). An RCCB can save your life by cutting off the power in the event of an electrical fault caused by a DIY blunder.
